Automatic laminator
- Automatic controlled by PLC Program.
- Stepless transmission realized by frequency inverter,automatic positioning and automatic lamination.

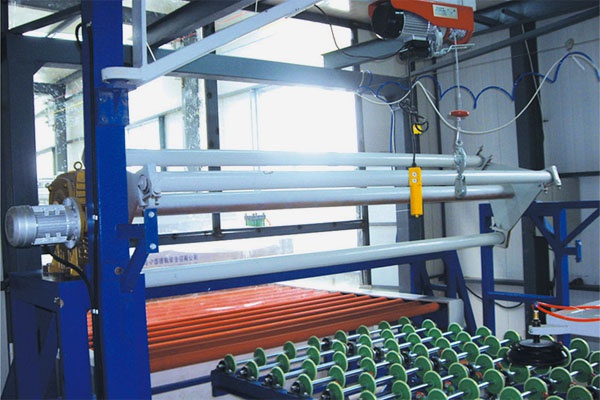

Motorized PVB Film Rack
- With electric hoist and rotating arm.
- Can mount PVB films in three specifications.
Application:
The Machine set is a corollary equipment of laminated glass line, can greatly lessen operator’s labor intensity during mass production.
| Model No. | ZTHP3624 | ZTHP6324 |
| Glass Size(mm) | 3600×2440 | 6100×3300 |
| Walking Speed(m/min) | 2~3 | 2~3 |
| Lifting Height(mm) | 400 | 400 |
| Suction Wight(Kg) | 500~800 | 500~1200 |
| Installed Power(Kw) | 2.2 | 4.2 |
| Working Pressure(MPa) | 0.6~0.8 | 0.6~0.8 |
| Working Air Pressure(MPa) | 0.4~0.6 | 0.4~0.6 |
Welcome talk with us for technical support and price.
